Low Voltage Pro Video Test Module for LVPRO Series

Name: Low Voltage Pro Video Test Module for LVPRO Series
SKU: VTM-KIT
Availability: InStock

SKU VTM-KIT

614395001803

No reviews yet | Write A Review

AED705.00

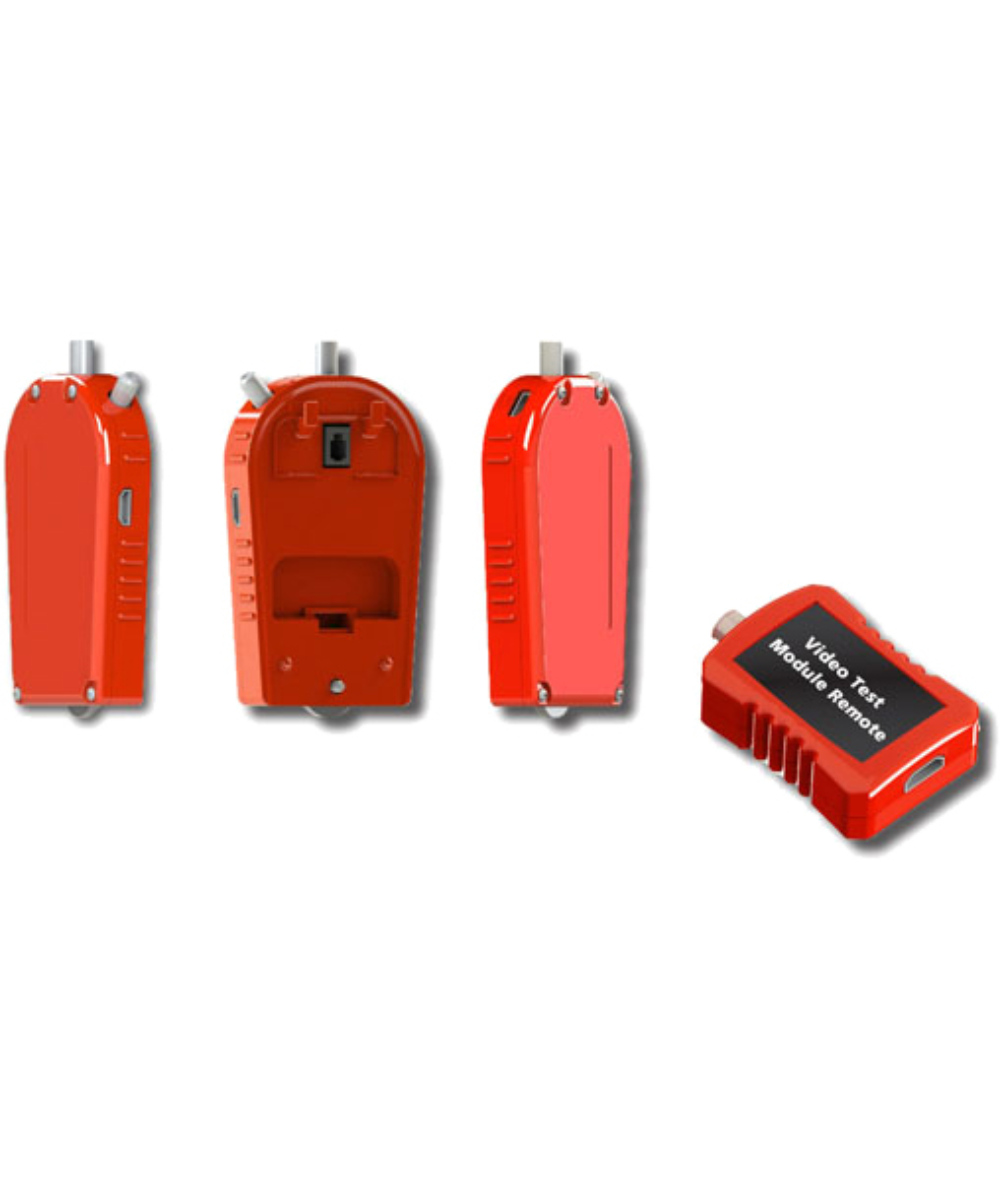

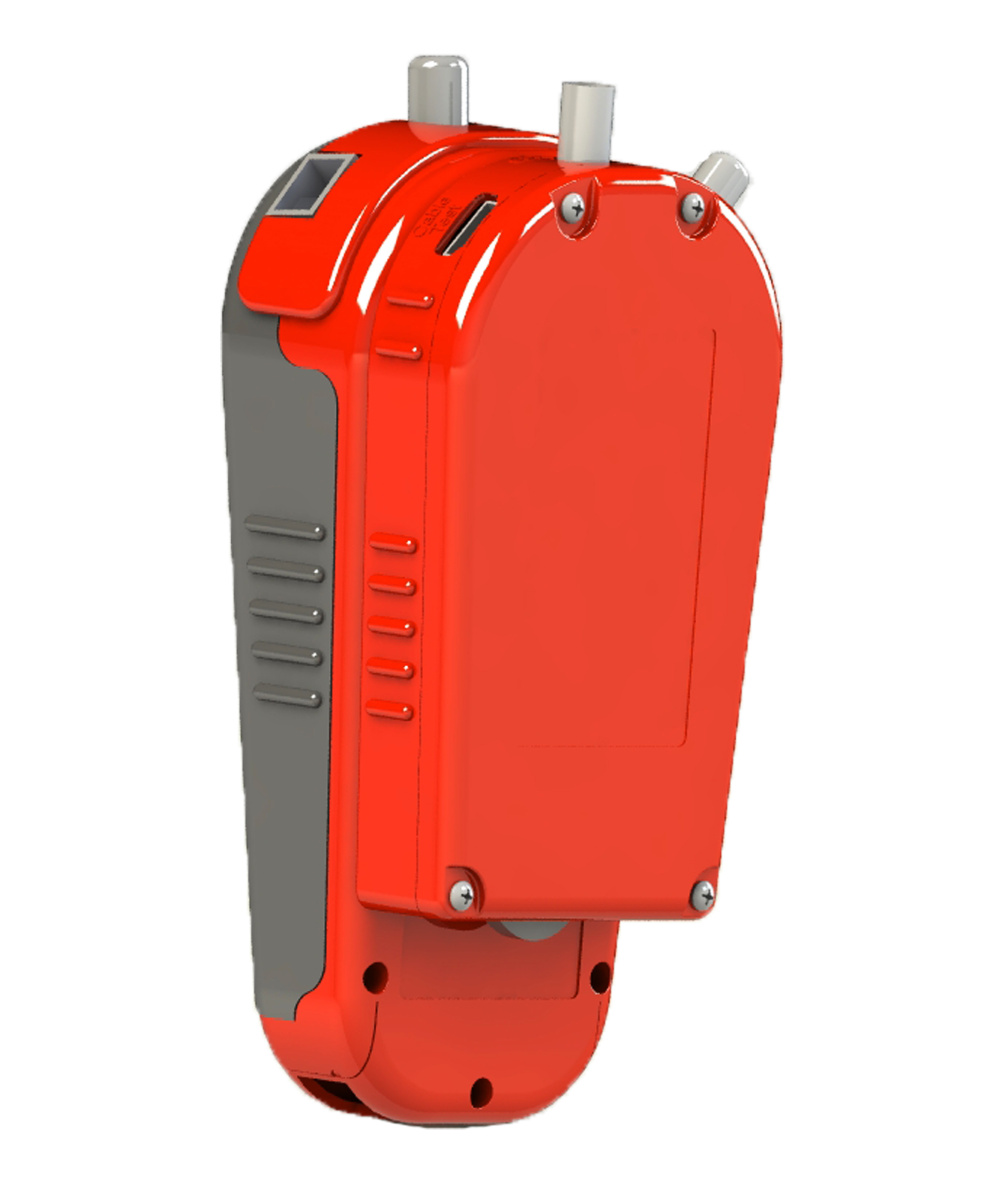

The Triplett VTM-KIT Video Test Module for the LVPro Model 20, 30 and 30SR extends the test and diagnostic capabilities of your LVPro cable tester by simply attaching the expansion connector harness in the LVPro cable tester to the module, and then securing the module to the tester. No additional software updates are required. With this new and powerful test module HDMI cable and Coax cable testing can be done.The VTM allows you to perform HDMI cable testing and type identification with the included Video Remote Unit, generate a VGA resolution test pattern for checking monitor connections, and perform a basic DDC Channel test with HDMI cables. The VTM also enables you to perform RF signal level measurement test on RG6/RG59 type coaxial cables with either F-type or BNC terminiations, as well as to perform dB loss measurements and coaxial cable installation mapping with numbered Video Remotes. Comes with 1 numbered remote for HDMI and dB loss testing.

Weight	0.6 kg
Dimensions	7.5 × 3.3 × 10.8 cm
Pieces	(1-2) Pcs, 3 & Above

Works with LVPRO 20, 30 and 30SR
Test Coax and BNC cables for signal level and loss in dBmV
Map transmitters on RG6, RG59 and BNC cables
Generate color bar test pattern on HDMI displays and identify cable quality

Product Group: Cable Testers

Product Type: LVPRO Series Harmonization

Includes: Includes 1 numbered remote for HDMI and dB loss testing

Harmonization Code: 9030.89.0100

ECCN: EAR99

Packaging: CLAMSHELL

weight lbs to kg: 0.6

Length in: 7.5

Width in: 3.3

Height in: 10.8

Cable Types Tested (All LVPRO models)	Shielded and unshielded twisted pair. All cable categories Coax. All types Telephone, speaker and alarm wire
Cable Tests (All LVPRO models)	Opens, shorts, reversals, split pairs, wiremap, propagation delay,skew, ohms. Feet and metricselectable
Advanced Cable Tests (All LVPRO models)	Length and distance to fault Adjustable and standard VOP settings for accurate length of all cables RLQ (Return Loss Quality)
Locating cable ends, split wires and switch ports (Al LVPRO models)	Wall jack identifiers (RJ45, coax, and mixed kits available) Speaker identification (Qty 8 available separately) Port blink. LVPRO lights the LED on the port switch
Device Tests (All LVPRO models)	Speakers: audible popper
Voltage Protection (All LVPRO models)	DC Volts: 100V AC Volts: 70
Length Measurement (All LVPRO models)	Max (all wire types): 1000 feet (305m) Min split pairs: 6 feet (2m) Min RLQ: 20 feet (7m) VOP calibration:Min cable sample 150 feet (50m)
Upgradeable (Model 20)	Length and distance to fault Adjustable and standard VOP settings for accurate length of all cables RLQ (Return Loss Quality)
Network Devices (Models 30 and 30SR)	10/100/1000 advertised speed and cable pairs used PoE pairs and cable pairs used CCTV camera video signal: measure peak to peak volts CATV (cable TV) requires min 30mV peak to peak signal Battery test:100mA loaded test for 12V alarm and other batteries
Printed Reports Models 30 and 30SR	Stores 250 cable test reports in memory
Battery	Type: 4 AA alkaline Life: 24 to 30 hours Auto power off: 30 minutes
Backlit Display	Off and 2 brightness levels
