Differential Pressure, Airflow and Pitot Tube Meter

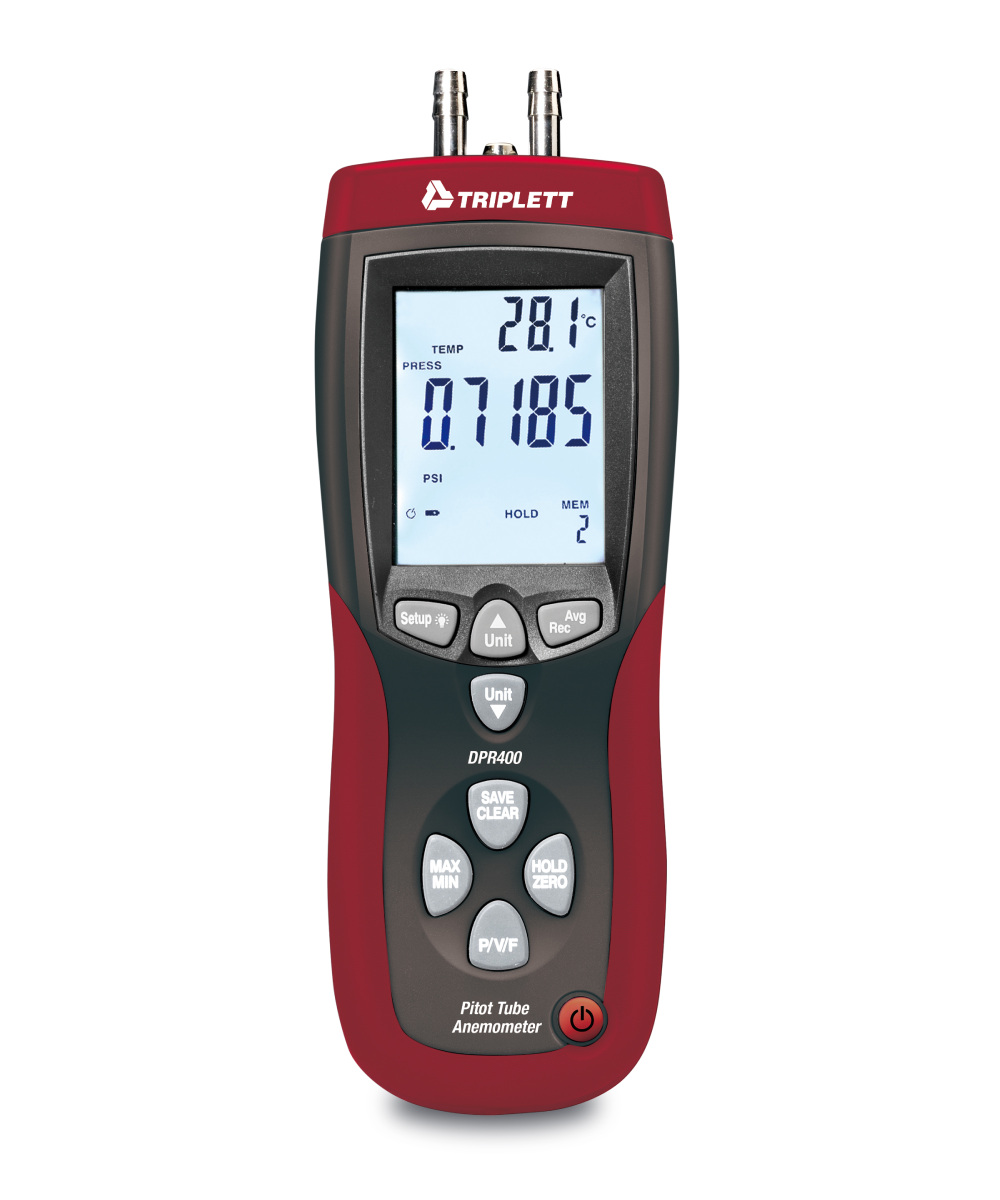

The Triplett Model DPR400 Airflow Meter/Pitot Tube Anemometer can simultaneously display Pressure, Air Velocity, or Air Flow plus Temperature. Use one input to measure the gauge pressure of a single source. Use both inputs to measure the differential pressure between two points of a single source or between 2 sources revealing which input has the higher pressure and the difference between them. Measurements are viewed on the large backlit LCD display in 5 units of measure. Connect the included pitot tube to measure air velocity or air flow. Duct shape and parameter settings for airflow measurement are recalled at power up. There is a Zero display adjust for all three modes. Min/Max/AVG records highest, lowest and average readings with relative time stamp. Data Hold momentarily freezes the displayed reading for easy viewing. It features store/recall up to 99 readings in each mode. Stored readings can be downloaded via USB interface to your PC using the included software. Software also provides real-time Data Acquisition for viewing and storing readings directly on your PC. Low battery indicator and Auto power off with disable. Includes pitot tube, 2 connection hoses (33.5″ (850mm)) (inner dia. 0.2″ (5mm)/outer dia. 0.4″ (9mm)), software, 9V battery, and hard carrying case. 2-year warranty.
