Name: Coating Thickness Tester with USB
SKU: CTT47
Availability: InStock

Coating Thickness Tester with USB

SKU CTT47

614395003746

AED987.00

The Triplett Model CTT47 Coating Thickness Tester with USB uses smart automatic recognition of ferrous (magnetic induction) and non-ferrous (eddy current measurement) substrates. Ideal for paint shops and electroplaters, chemical, automobile, shipbuilding, and aircraft industries. Use in the laboratory, workshop, or field. It has an easy-to-use menu, 8 level adjustable backlight, two point calibration with Zero adjust, and two working modes: Direct and Group. Built-in memory stores up to 1500 readings (30 Group readings). Readings can be transfered to a PC via the USB interface. Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and hard case. 1-year warranty.

Weight	1.94 kg
Dimensions	10.63 × 2.95 × 7.48 cm

Smart automatic recognition of ferrous and non-ferrous substrates
Magnetic induction for ferrous substrates
Eddy current measurement for non-ferrous substrates
Easy-to-use menu system
Two working modes: Direct and Group
Two-point calibration with Zero adjust
Memory storage up to 1500 readings (30 Group readings)
Data transfer to PC via USB interface
8-level adjustable backlight
Low battery indicator

Product Group: Specialty Tools

Product Type: Coating Thickness Testers

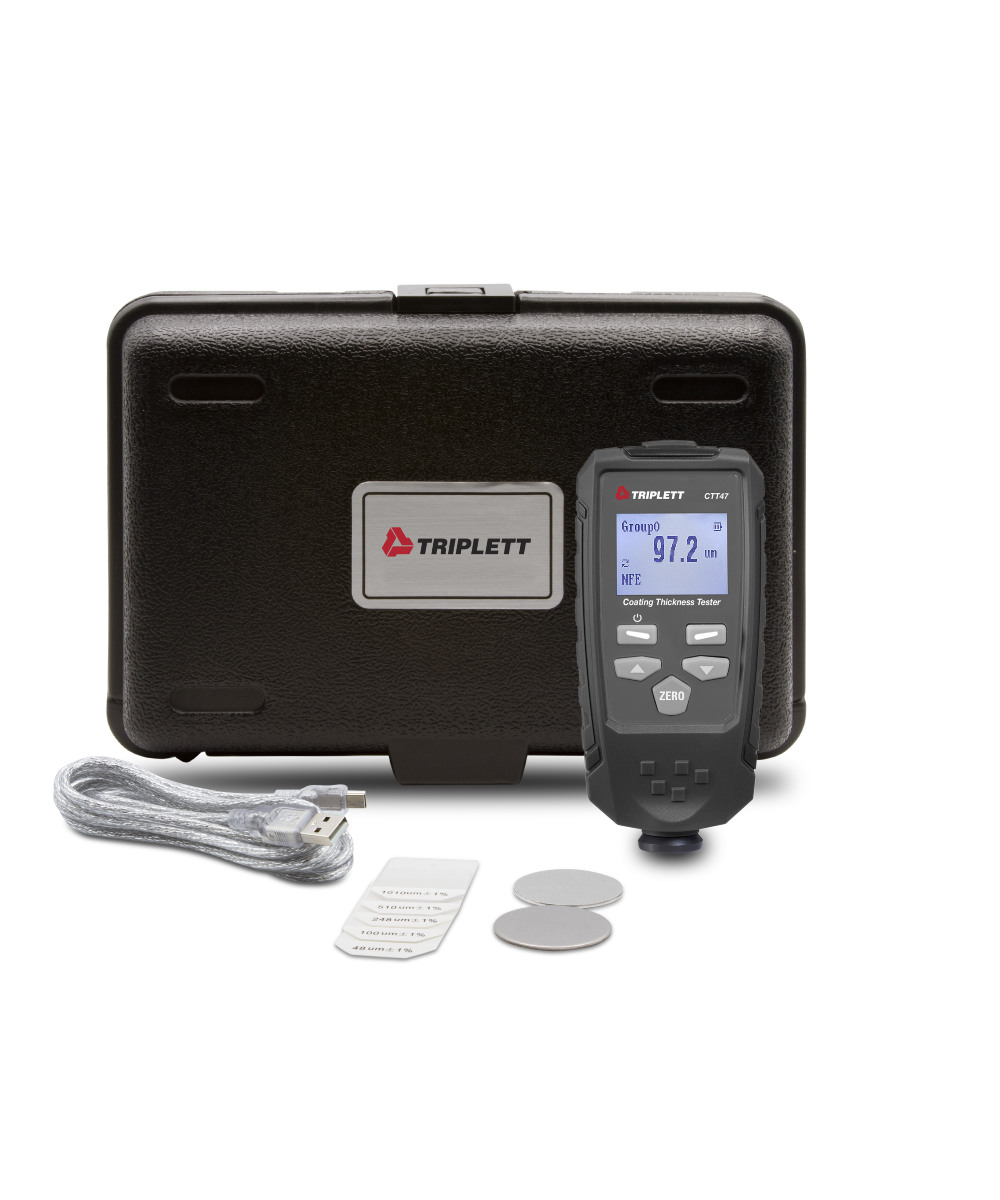

Includes: Includes two AAA batteries, USB cable, Calibration Iron, Calibration Aluminum, Precision Standards, and hard case

Harmonization Code: 9027.10.6000

ECCN: EAR99

Packaging: Box

Weight lbs to kg: 1.94

Length in: 10.63

Width in: 2.95

Height in: 7.48

CTT42	Ferrous	Non-Ferrous
Measuring Range	0 to 1250μm; 0 to 49mils	0 to 1250μm; 0 to 49mils
Resolution	0.1μm (0.004mils)	0.1μm (0.004mils)
Accuracy	±3%	±3%
Minimum Curvature Radius	1.5mm (59.06mils)	3mm (118.1mils)
Minimum Diameter	7mm (275.6mils)	5mm (196.9mils)
Minimum Thickness	0.5mm (19.69mils)	0.3mm (11.81mils)
Sample Rate	Selectable 1 second to 24 hours
PC Interface	USB port
Power	2 AAA batteries
Dimensions	4.3 x 2.0 x 1.0” (110 x 50 x 23mm)
Weight	3.9oz (100g)
