Name: 400A TRMS AC/DC Mini Clamp with Inrush
SKU: 5049
Availability: InStock

400A TRMS AC/DC Mini Clamp with Inrush

Certificate

Standard
With Certificate of NIST

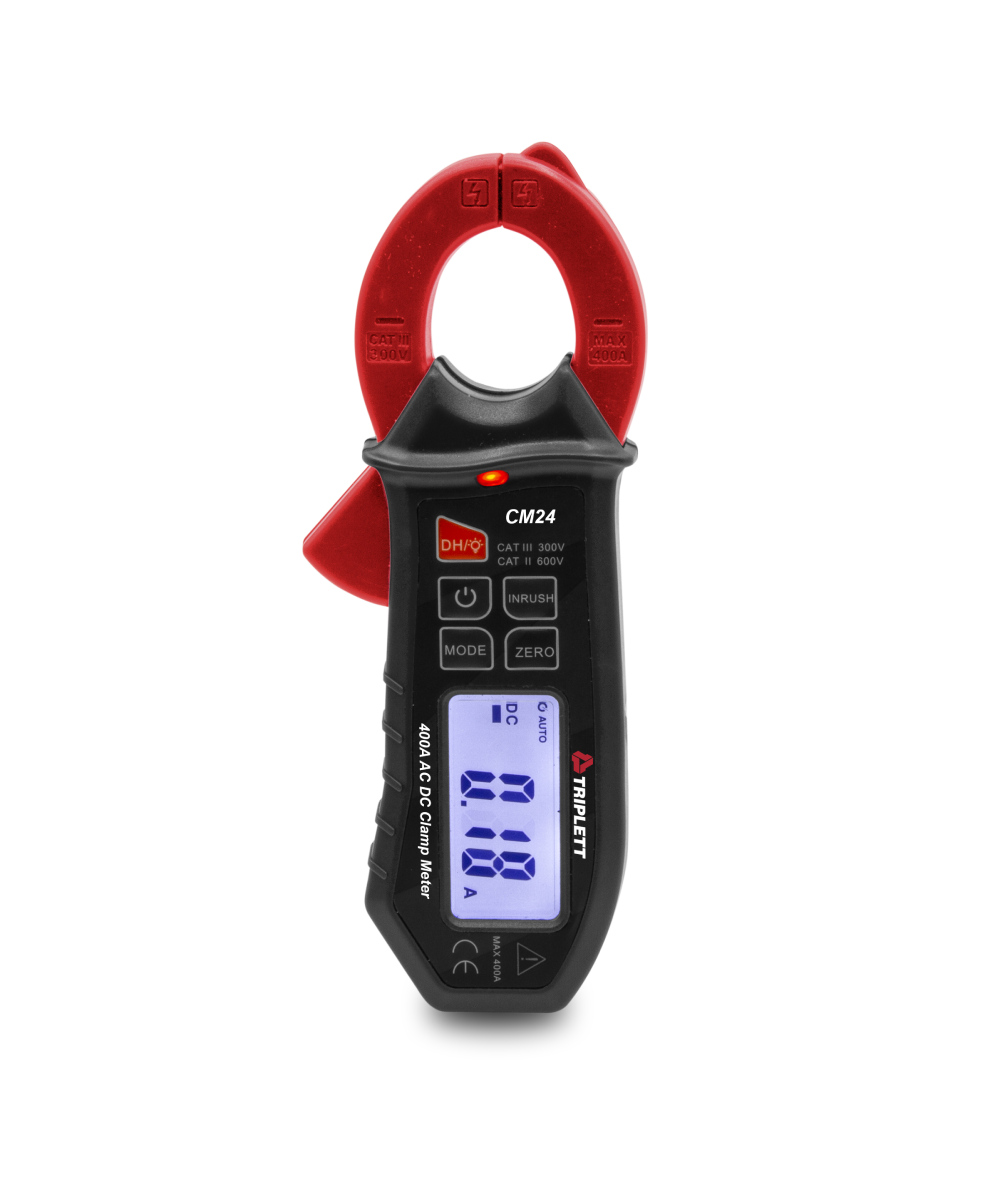

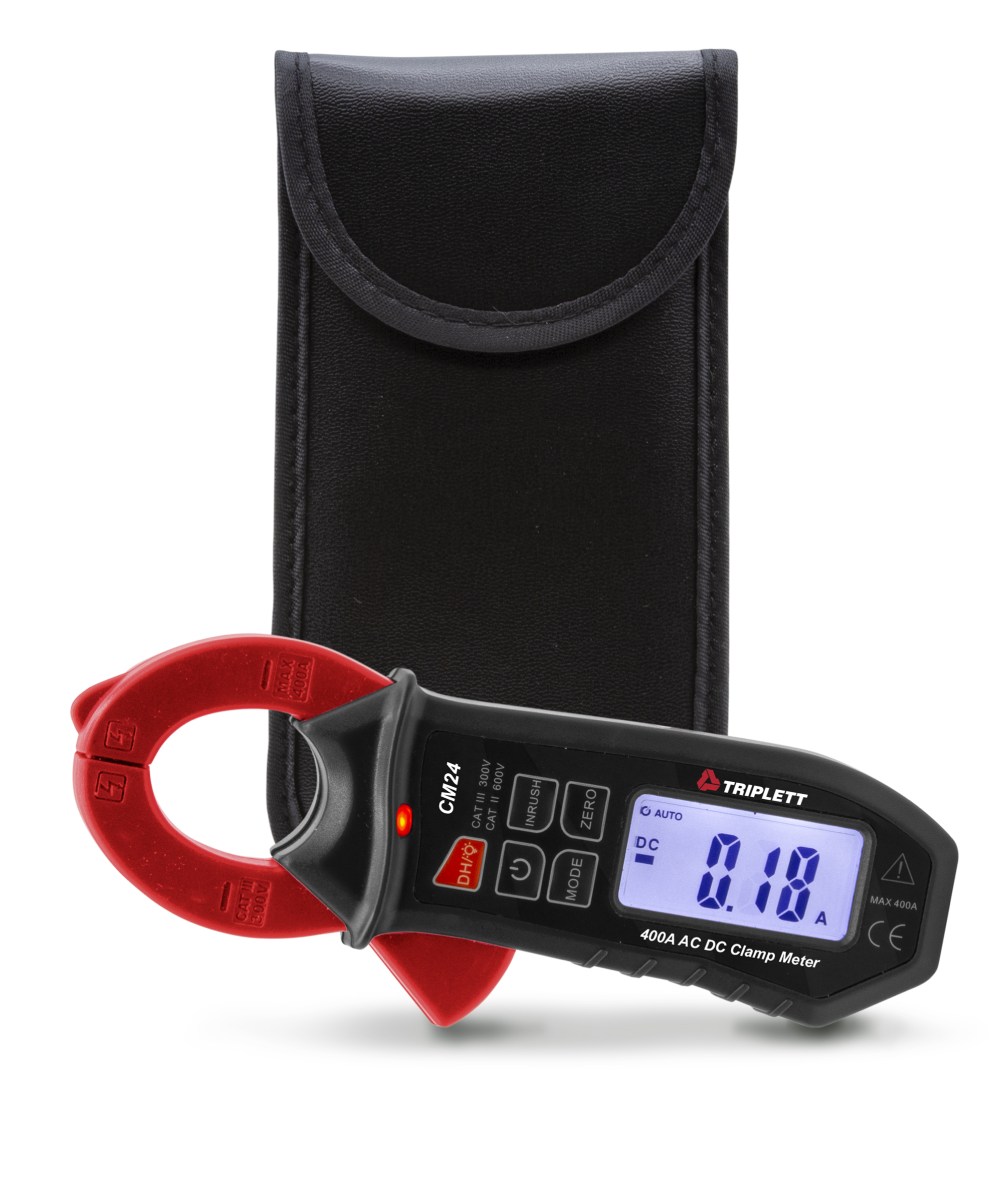

The Triplett Model CM24 True RMS Mini Clampmeter can measure AC and DC current to up 400A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Measurements can read on the 4000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Additional features include: a built-in NCV detector with LED, DC zero function, overrange indication, and Auto power off. Data Hold freezes the display for easy viewing. CAT III-300V safety category. Includes 2 AAA batteries. 1-year warranty.

Weight	0.5 kg
Dimensions	6.5 × 1.75 × 9.75 cm
Certificate	Standard, With Certificate of NIST

Captures the instantaneous surge (inrush) current when power equipment is turned on
True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
0.8″ (21mm) jaw opening, Built-in NCV detector with LED
4000 count backlit LCD
DC zero function
Data Hold freezes the display
Overrange indication
Auto power off
CAT III-300V

Product Group: Electrical & Test Measurement

Product Type: Clamp-On Meters

Includes: Includes 2 AAA batteries

Harmonization Code: 9030.33.3800

ECCN: EAR99

Packaging: Box

Weight lbs to kg: 0.5

Length in: 6.5

Width in: 1.75

Height in: 19.75

	CM24
AC Current 50-60HZ	40.00A ±(2.5% + 10d) 400.0A ±(2.8% + 8d)
AC Current 50-400HZ(sine wave only)	40.00A ±(2.5% + 10d) 400.0A ±(2.8% + 8d)
DC Current	40.00A ±(2.5% + 10d) 400.0A ±(2.8% + 8d)
NCV Detector Range	0 to 600VAC
Power	(2) AAA batteries
Safety Category	CAT III-300V
Dimensions	6 x 2.4 x 1.1” (152 x 60 x 28mm)
Weight	4.7oz (134g)
