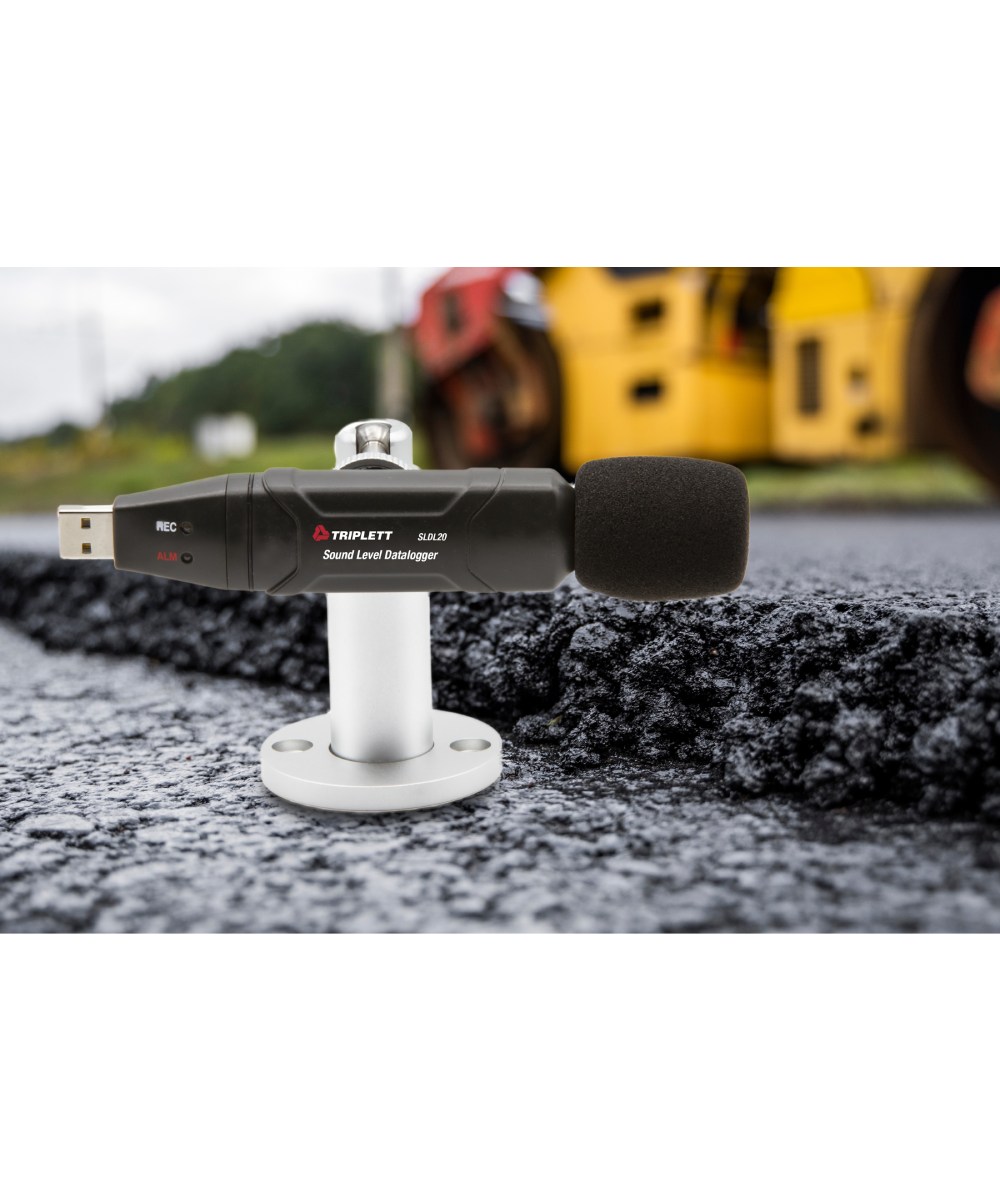

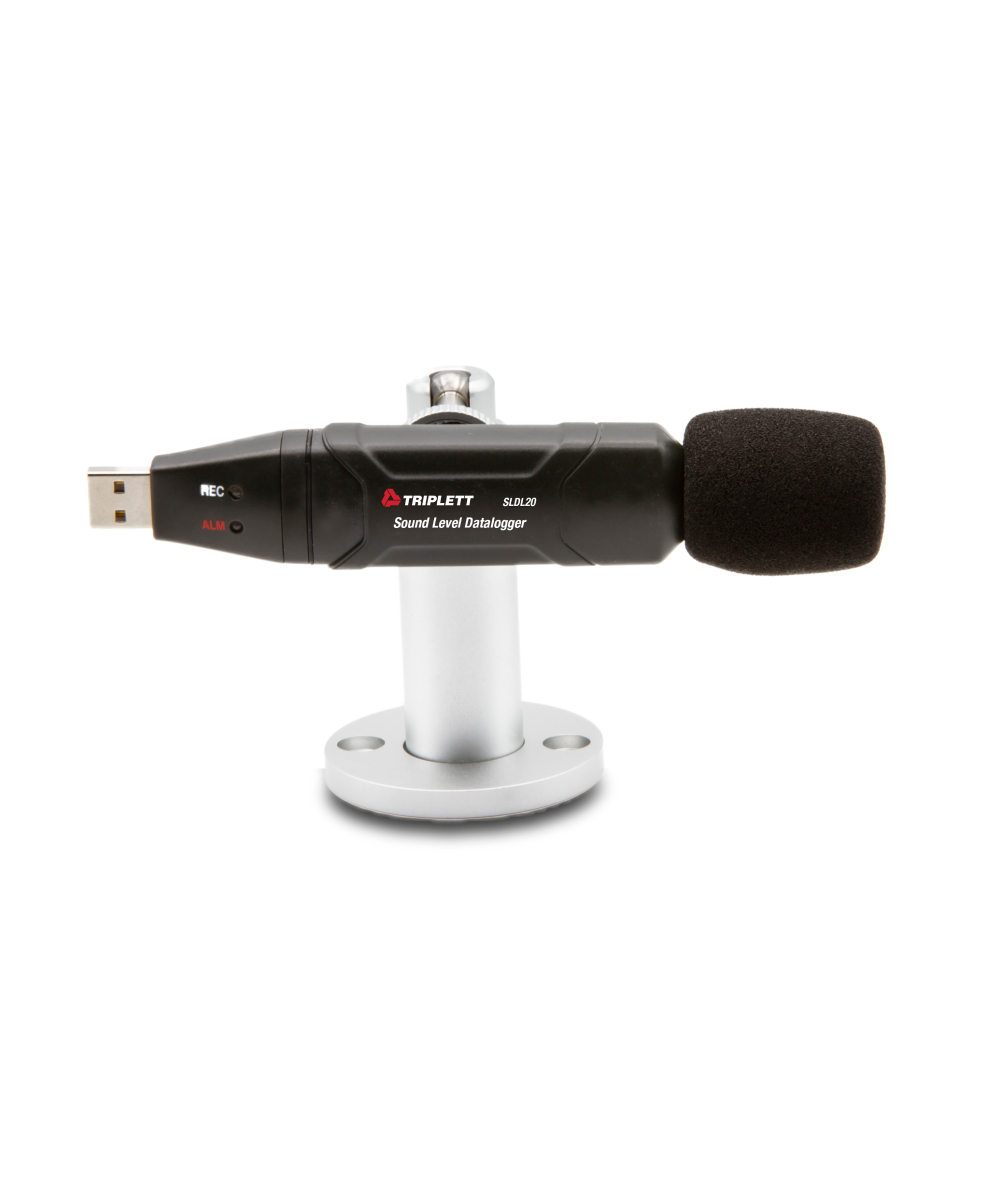

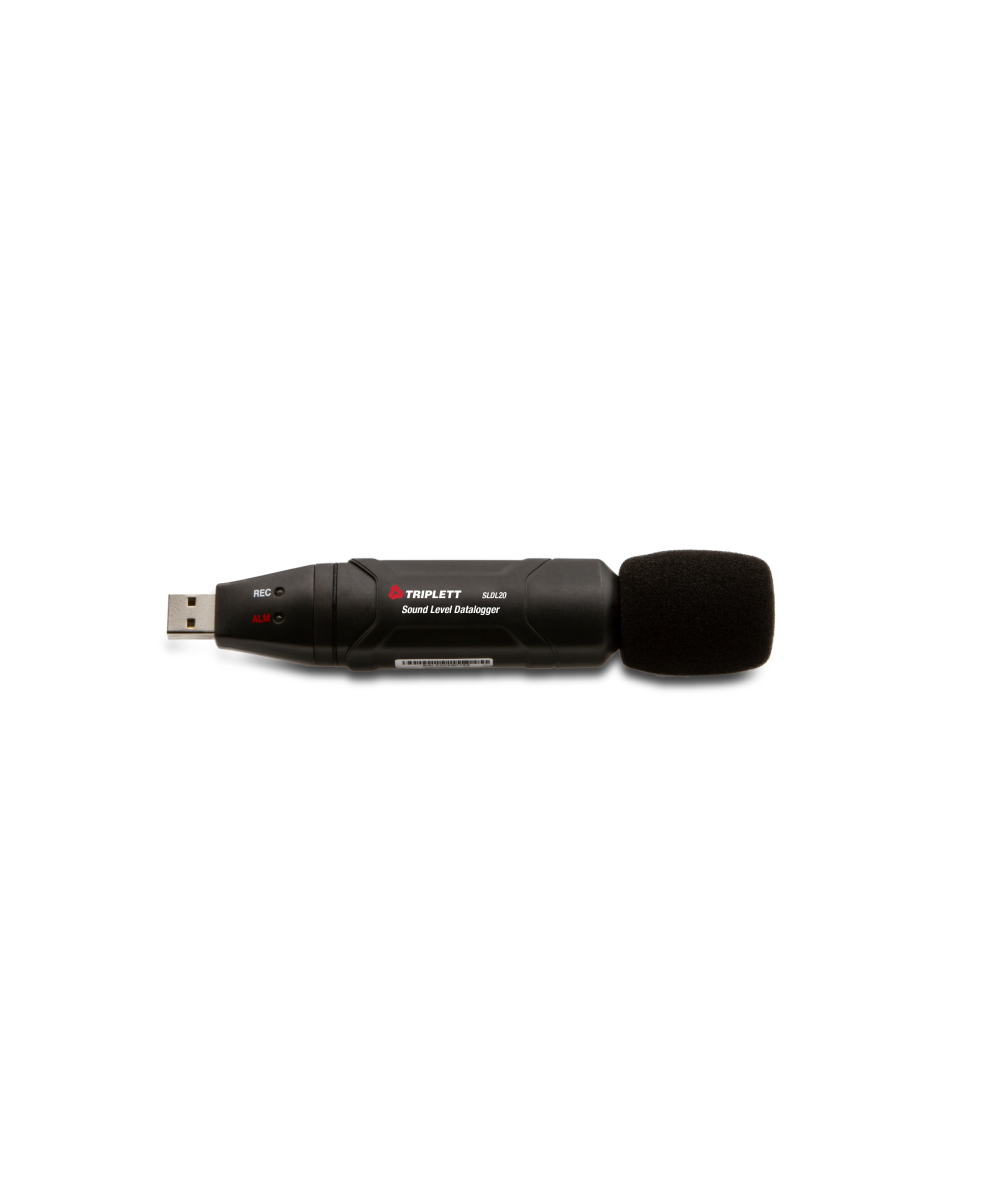

USB Sound Datalogger

SKU SLDL20
614395004538
No reviews yet | Write A Review

AED846.00

The Triplett SLDL20 USB Sound Level Datalogger can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications. The Sound Level Meter meets IEC 61672-1 Class 2 with ±1.4dB accuracy. It can datalog up to 129,920 readings with user programmable sampling rate (1 second to 24 hours) and date/time stamp. It features a 30 to 130dB range plus A and C weighting with selectable fast/slow response time. Additional features include: user programmable high/low alarms, 2 LEDs that display operation, alarm, battery, and memory status, Min/Max, and automatic or manual start. Includes wind screen, 1/2 AAA battery (Triplett 37-66), and software. 1 year warranty.

Weight 0.75 kg
Dimensions 12.0 × 3.0 × 3.0 cm
  • Records up to 129,920 readings with user programmable sample rate
  • Meets IEC 61672-1 Class 2 standards
  • ±1.4dB accuracy
  • 30 to 130dB range
  • A and C weighting
  • Selectable fast/slow response time
  • User programmable high/low visual alarms
  • 2 LEDs display operation, alarm, battery, and memory status
  • Min/Max stores/recalls highest and lowest readings
  • Manual or Automatic start time

Product Group:  Environmental Testers

Product Type: Sound Meter/Dataloggers

Includes: Includes wind screen, 1/2 AAA battery (Triplett 37-66), and software

Harmonization Code: 9027.10.6000

ECCN: EAR99

Packaging: Box

Weight lbs to kg: 0.75

Length in: 12.0″

Width in: 3.0″

Height in: 3.0″

SLDL20
Measurement Range 30 to 130dB
Bandwidth 31.5 to 8kHz
Resolution 0.1dB
Accuracy ±1.4dB
Standards Meets IEC 61672-1 Class 2
Frequency Weighting A and C (selectable)
Response Time Fast: 125ms / Slow: 1s
Interface USB
Memory Datalogs up to 129,920 data points
Sample Rate 1 second to 24 hours
Power 1/2 AAA Battery (Triplett 37-66)
Dimensions 5.1 x 1.1 x 0.9″ (130 x 30 x 25mm)
Weight 1oz (20g)
Data SheetUser Manual
