Sound Datalogger Kit with Calibrator

No reviews yet | Write A Review

Price range: AED1,763.00 through AED2,689.00

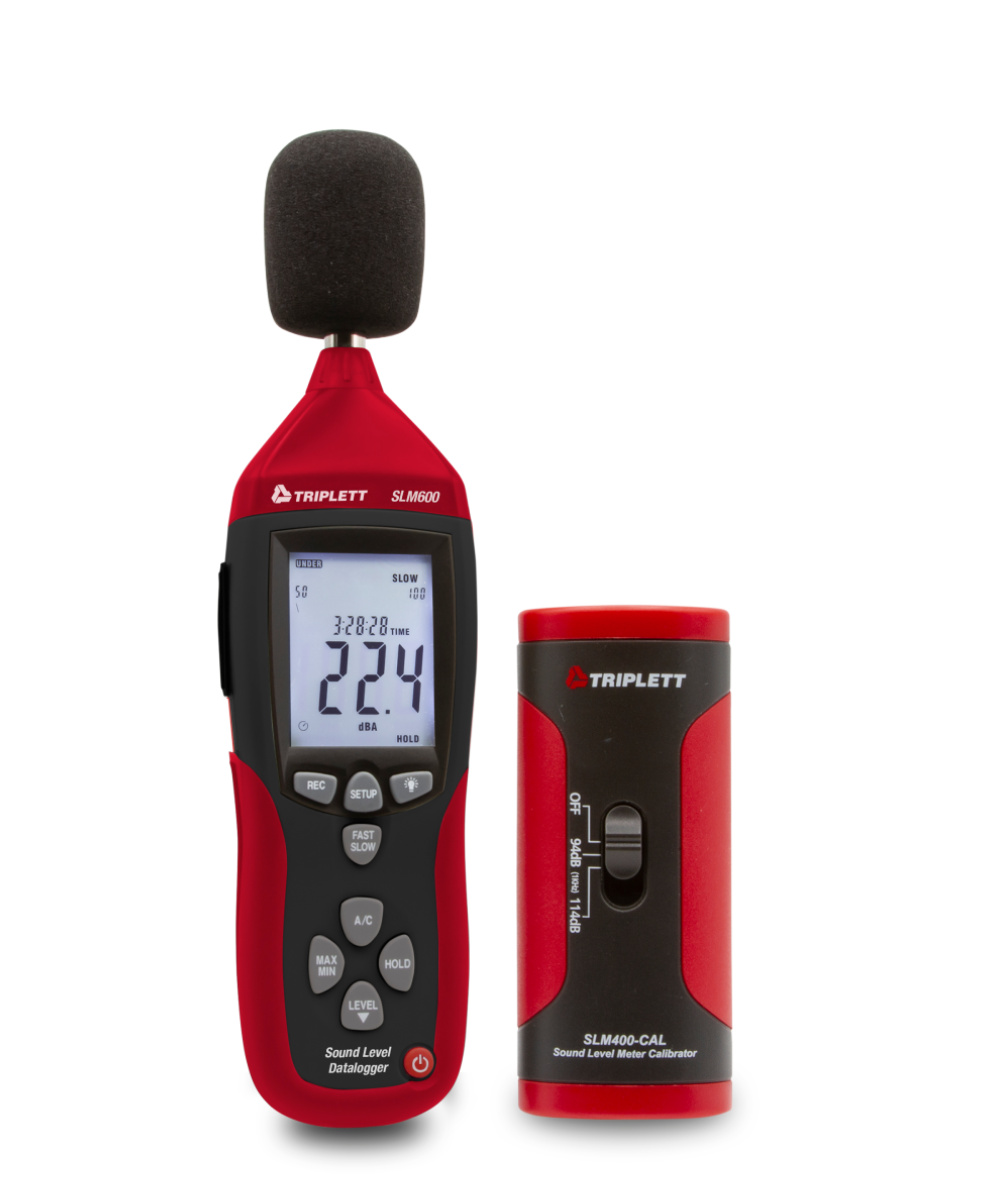

The Triplett SLM600-KIT Sound Level Meter/Datalogger with Calibrator Kit can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications. The Sound Level Meter meets IEC 61672-1 Class 2 with ±1.4dB accuracy. It can datalog up to 32,700 readings with user programmable sampling rate (1 to 59 seconds) and date/time stamp. It features a 30 to 130dB range (3 ranges) plus A and C weighting with selectable fast/slow response time. Additional features include: Analog AC/DC output, Data Hold, Min/Max, and Auto power off with disable. The calibrator fits 1/2″ diameter microphones and has selectable 94dB and 114dB output with ±0.5dB accuracy. Calibrator output frequency is ±4%@1kHz. The kit includes Class 2 Sound Level Meter/Datalogger with wind screen, 9V battery, USB cable, screwdriver, and software, plus Sound Level Calibrator with 9V battery. All stored in a hard, carrying case. 1 year warranty.

Weight 4.25 kg
Dimensions 15.75 × 11.25 × 4.25 cm
Certificate

Standard, With Certificate of NIST
  • Records up to 32,700 readings with user programmable sample rate
  • Meets IEC 61672-1 Class 2 standards with ±1.4dB accuracy
  • 30 to 130dB over 3 ranges with over/under range indication
  • A and C weighting with selectable fast/slow response time
  • Analog AC/DC outputs
  • Real time clock
  • Min/Max stores/recalls highest and lowest readings
  • Sound Level Calibrator with selectable 94dB and 114dB output at 1kHz
  • Fits ½” diameter microphones
  • Output Frequency ±4%@1kHz with ±0.5dB accuracy

Product Group:  Environmental Testers

Product Type: Sound Meter/Dataloggers

Includes: Includes Class 2 Sound Level Meter/Datalogger with Certificate of Traceability to N.I.S.T., wind screen, 9V battery, USB cable, screwdriver, and software, plus Sound Level Calibrator with Certificate of Traceability to N.I.S.T. and 9V battery. All stored in a hard, carrying case

Harmonization Code: 9027.10.6000

ECCN: EAR99

Packaging: Box

Weight lbs to kg: 4.25

Length in: 15.75″

Width in: 11.25″

Height in: 4.25″

SLM600
Measurement Ranges Auto: 30 to 130dB;
Low: 30 to 80dB;
Medium: 50 to 100dB;
High: 80 to 130dB
Bandwidth 31.5 to 8kHz
Resolution 0.1dB
Accuracy ±1.4dB
Standards Meets IEC 61672-1 Class 2
Frequency Weighting A and C (selectable)
Response Time Fast: 125ms / Slow: 1s
Analog Output AC=1Vrms, DC=10mV/dB
Interface USB
Memory Datalogs up to 32,700 data points
Sample Rate 1 to 59 seconds
Power 9V Battery
Dimensions 11 x 3 x 2″ (278 x 76 x 50mm)
Weight 12.3oz (350g)
Data SheetUser Manual
