PoE Extender over Coax 300M

SKU POC-300M
614395004569
No reviews yet | Write A Review

AED823.00

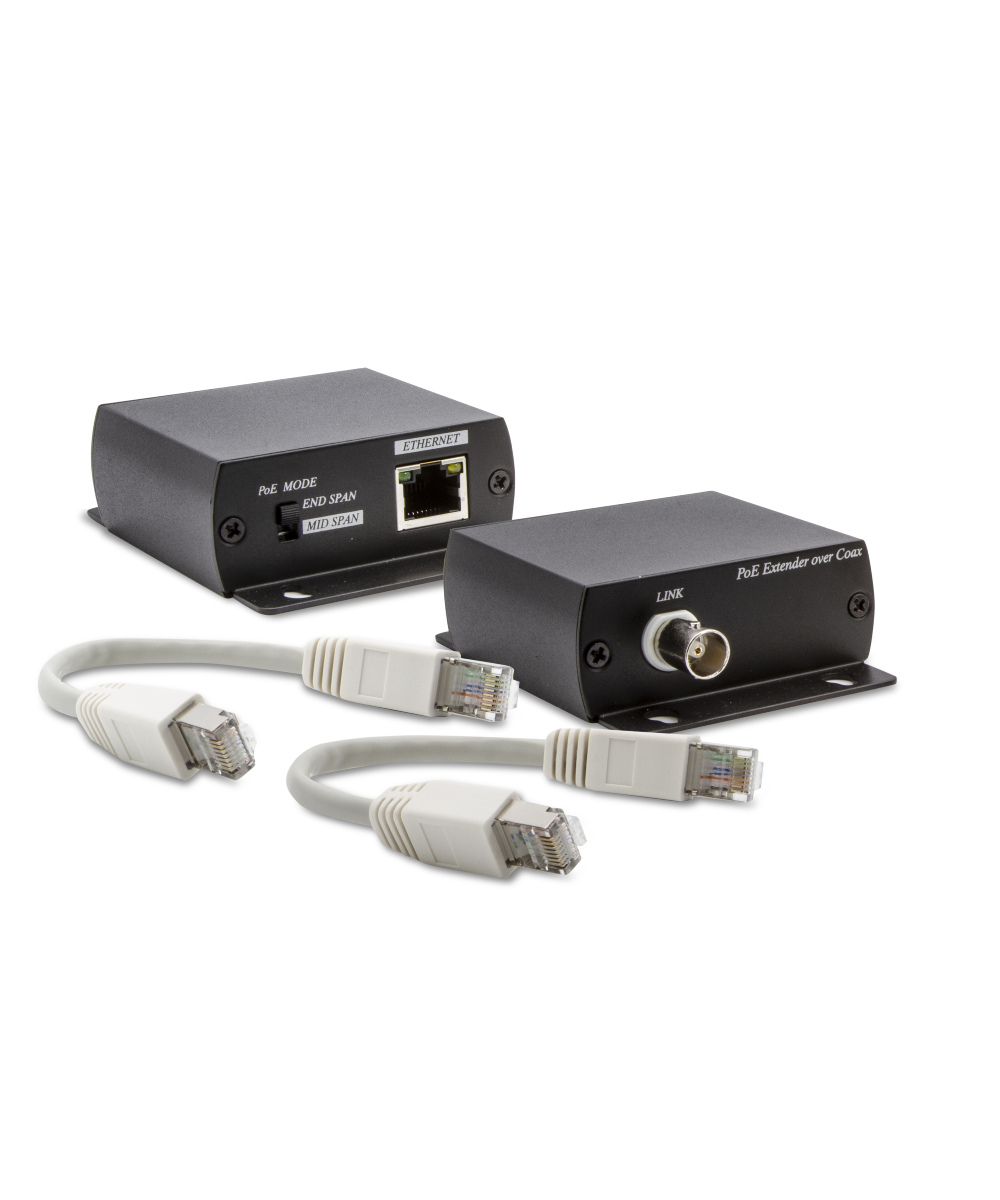

The Triplett Model POC-300M is a PoE (Power over Ethernet) extender that can use coaxial cable to send the signal to any TCP/IP 10/100BaseT device with a transmission distance up to 300M (RG6U 10Mbps). It is the perfect solution to replace analog cameras to PoE using the existing coaxial cable. Includes a pair of PoE Over Coax Extenders, (2) 8″ (20cm) crossover cables, and (2) mounting screws.

Weight 0.9 kg
Dimensions 4.5 × 3.25 × 1.4 cm

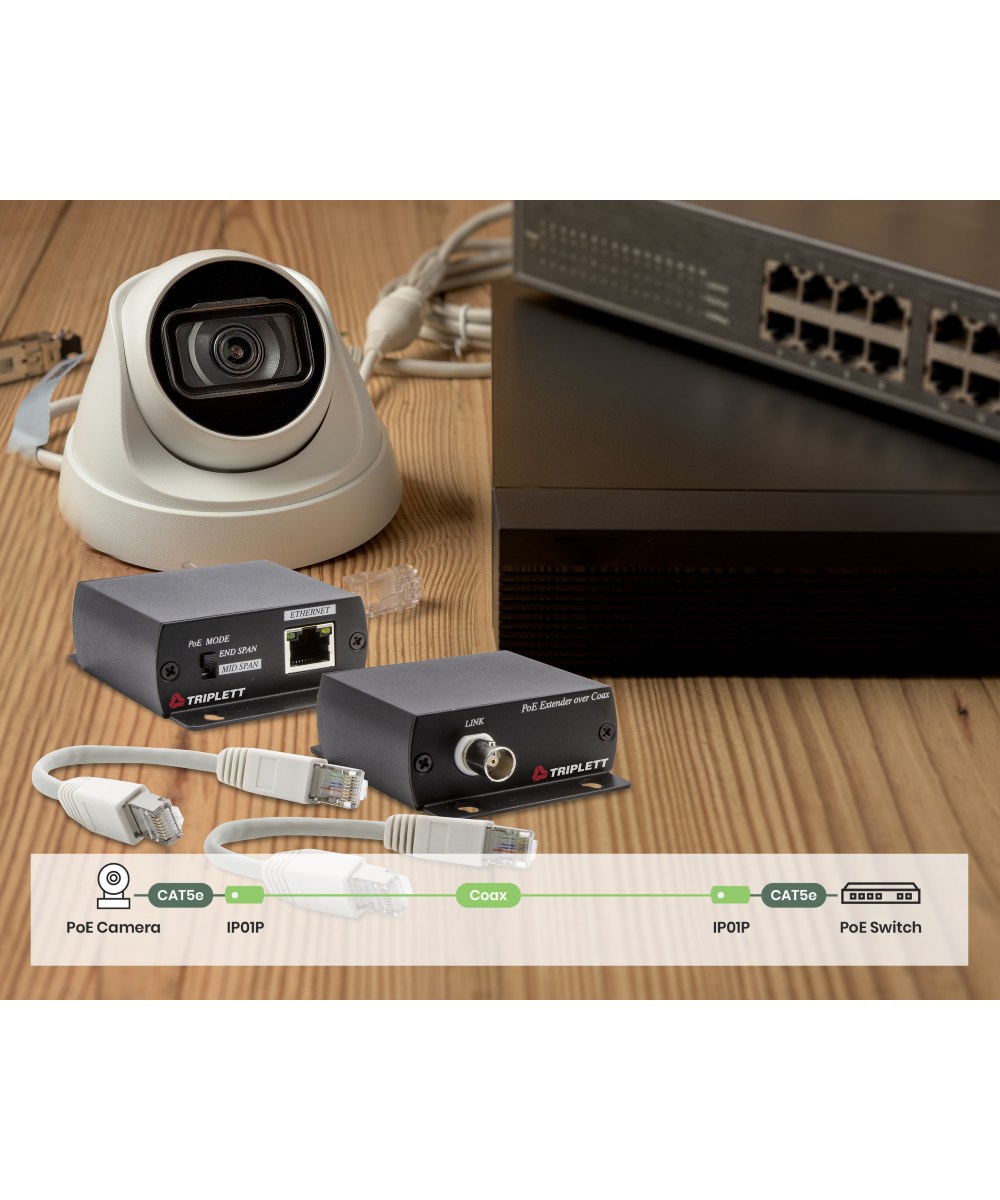

  • Upgrade analog cameras to PoE without replacing existing coaxial cable
  • Sends PoE signal over coaxial cable
  • Signal extension up to 300M over RG6U coaxial cable (10Mbps)
  • Bandwidth up to 100Mbps (RG6U 100M)
  • Power from a PoE switch or a PoE injector
  • Switchable configuration: End Span pin 1/2 and 3/6 to send power, Mid Span pin 4/5 and 7/8 to send power (recommended)

Product Group:  POC/POE

Product Type: PoE Extender over Coax

Includes: Includes a pair of PoE Over Coax Extenders, (2) 8″ (20cm) crossover cables, and (2) mounting screws

Harmonization Code: 8504.90.6500

ECCN: EAR99

Packaging: Box

Weight lbs to kg: 0.9

Length in: 4.5

Width in: 3.25

Height in: 1.4

POC-300M
Compliance IEEE 802.3af, IEEE802.3at
Transmission Distance 300M (RG6U 10Mbps)
Network Bandwidth 10/100Mbps
Input RJ45
Output BNC
Power Requires power from a PoE switch or PoE injector
Dimensions 2.6 x 3.4 x 1″ (67 x 87 x 27mm)
Weight 5.3oz (150g)
Data SheetUser Manual
Categories: IP EXTEND, POE TESTERS & EQUIPMENT
